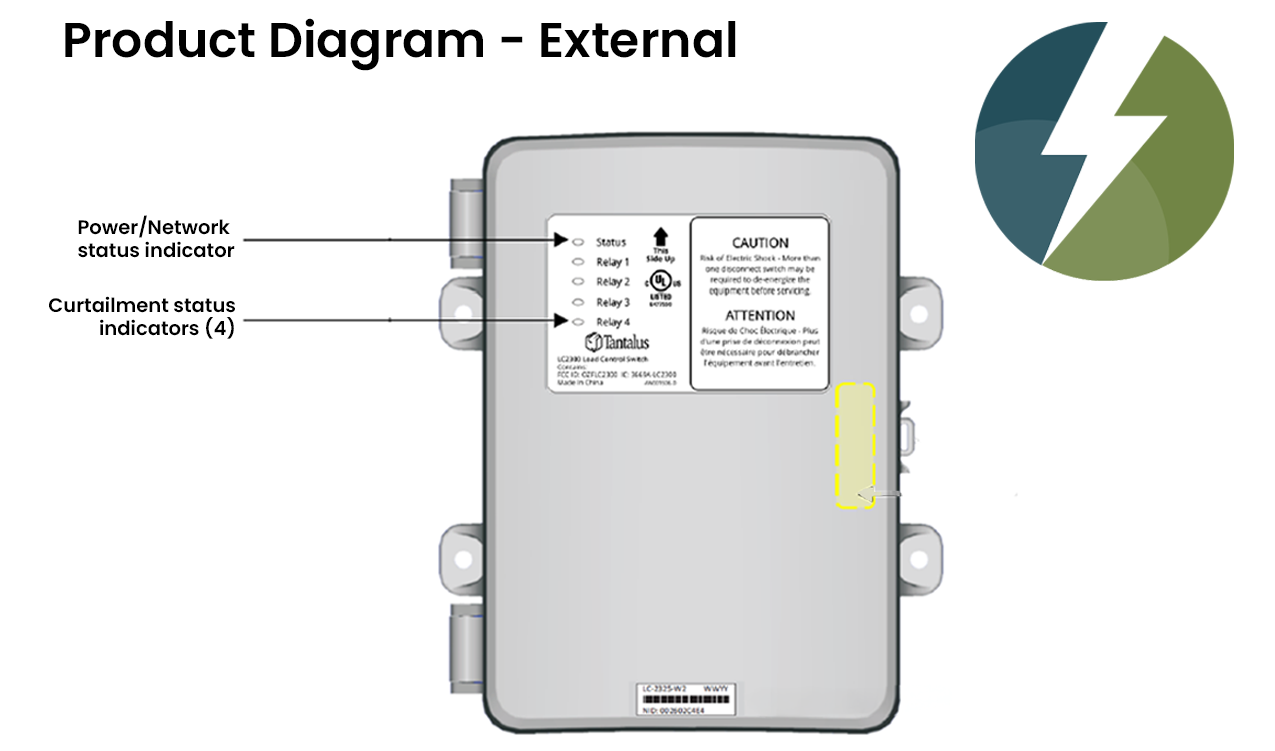

Understanding your Load Control Radio Receiver

tantalus receiver

LED

Color

Indicator Mode

Off                              On

Load

Programs

Status

Green

No power/Not Connected

Online/Connected

Blinking light is normal

N/A

Relay 1

Red

Low Voltage

Relay Closed

Low Voltage

Relay Open

Off-Peak, Dual Fuel, Cooling

Relay 2

White

Low Voltage

Relay Closed

Low Voltage

Relay Open

Off-Peak, Dual Fuel, Cooling

Relay 3

Blue

High Voltage

Relay Closed

High Voltage

Relay Open

Water Heating, Irrigation, Electric Vehicle (EV)

Relay 4

Rarely Used

Yellow

High Voltage

Relay Closed

High Voltage

Relay Open

Varies
  • Relay Closed- Light On à Being controlled
  • Relay Open-Light Off à Not controlled

Note: Any time power is interrupted to the unit, for any reason, the radio receiver is “programed” not to run for 5-10 minutes after the last time power was restored. DO NOT turn breakers on and off if your Off-Peak system(s) has not been operating. Instead, wait 5-10 minutes and the systems should operate.
